Simultaneous Iris and Face Capture
Fully automatic concurrent dual iris and face image capture — iris and face images are collected virtually at the same time.
Capture in motion. Deploy anywhere.
Advanced algorithms enable high-quality iris capture even while the user or device is in motion — with a USB interface for portable enrollment kits, mobile stations, and remote pop-up environments.
Dual iris + face · <2s · 4.3" LCD · USB · ISO 29794-5/6 · Tripod mount
Overview
Handheld identity built for real-world operations.

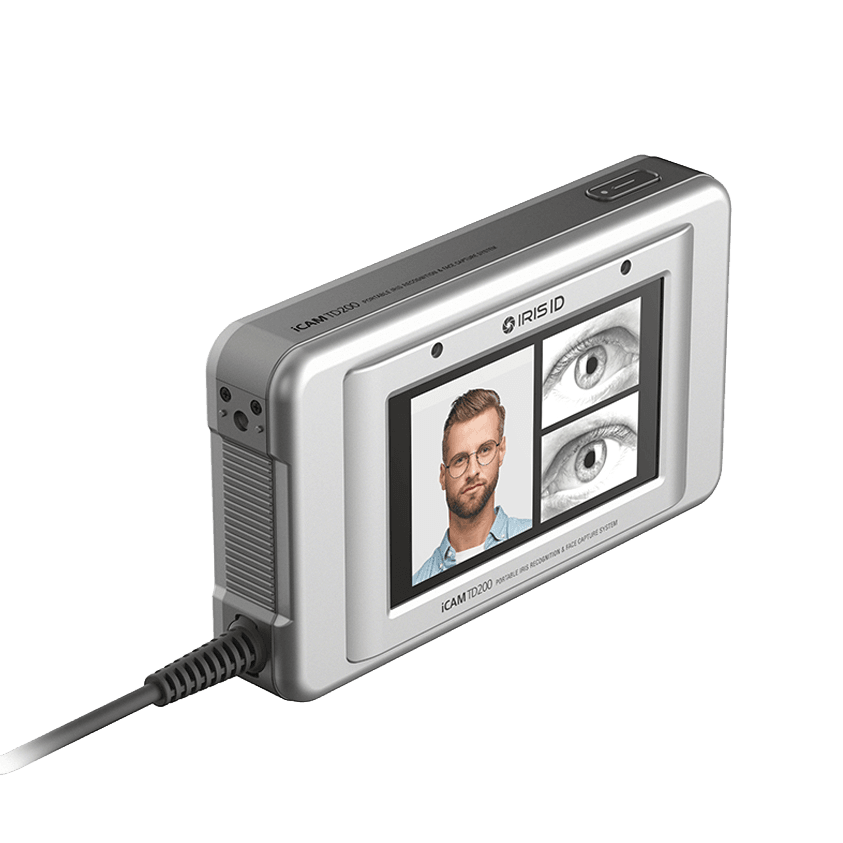

Iris ID has been producing commercial iris recognition systems since 1997, and today IrisAccess® authenticates more people in more locations than all other iris platforms combined. This unmatched experience is fully embodied in the iCAM TD200, a next-generation handheld solution engineered to deliver fast, accurate, and effortless multimodal identity authentication.
Earlier handheld iris systems required subjects to remain still and cooperate extensively. The TD200 eliminates these limitations — Iris ID’s advanced algorithms enable high-quality iris capture even while the user or device is in motion, dramatically simplifying the operator’s job. A single touch initiates simultaneous dual iris and face capture, outputting ISO-compliant images in under two seconds.
<2s
Dual iris + face capture
40–60cm
Operating range
4.3"
Operator LCD
USB
Portable kit ready
Key Features
Engineered for operators in the field.
High-Quality Color 2D Face Capture

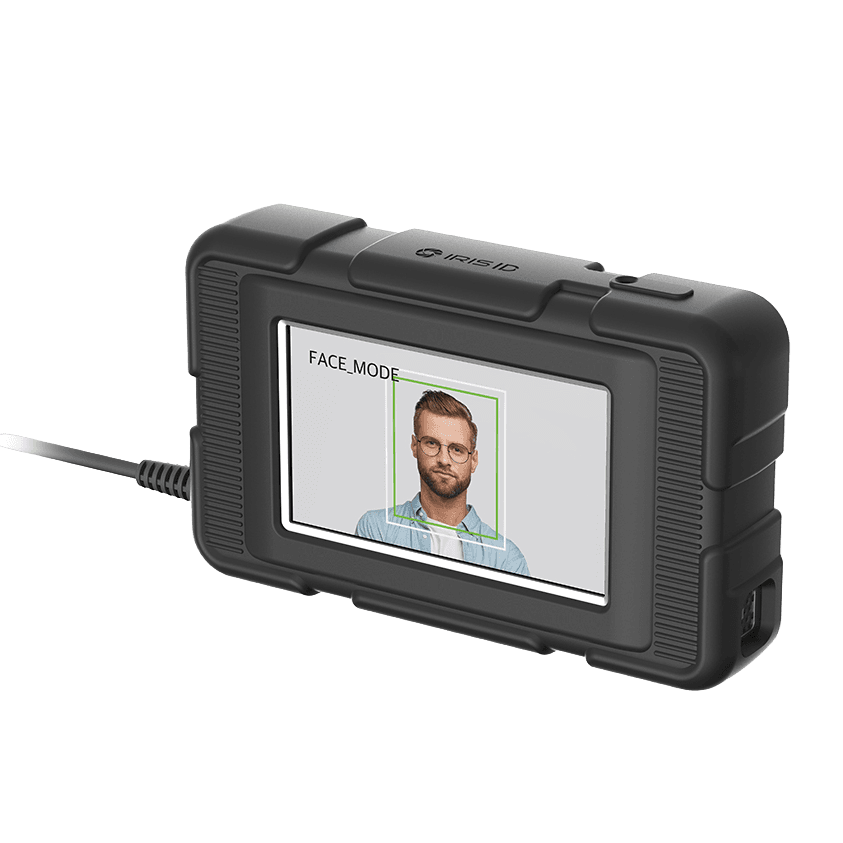

Integrated framing provides feedback for capturing a properly formatted ISO-compliant face image, with manual or automatic capture via the API or shutter button.
High-Speed Automatic Dual Iris Capture
Advanced algorithms enable high-quality iris capture even while the user or device is in motion, in under two seconds.

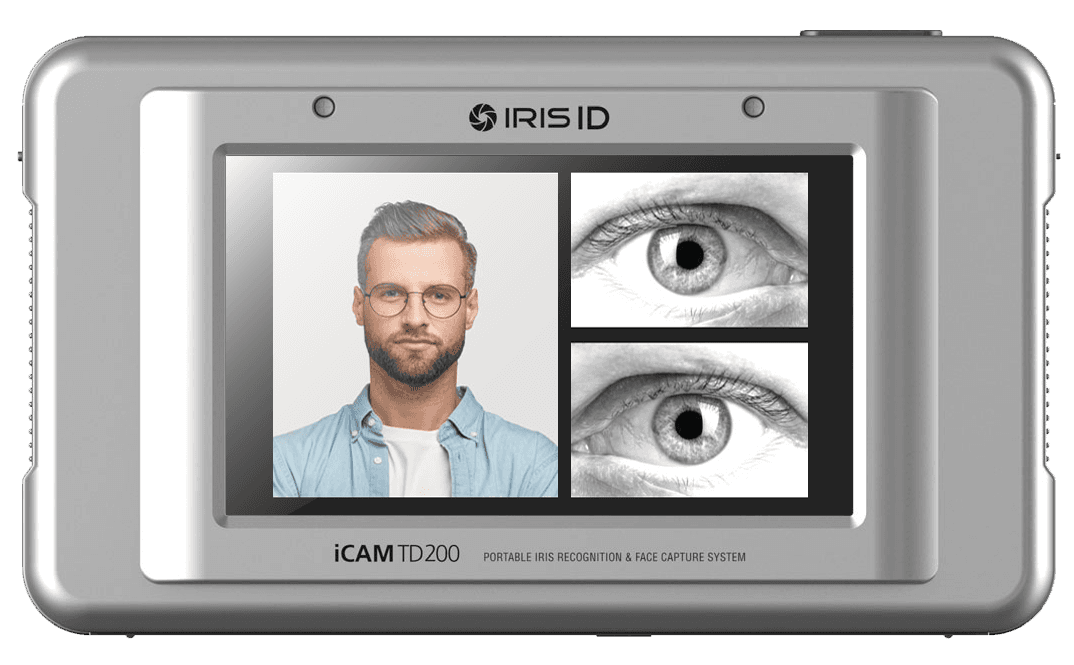

Intuitive Operator LCD Guidance System
The 4.3" color LCD and status indicators guide operators through fast, consistent capture with minimal training.
Standards-Compliant Hardware and Software
Outputs ISO/IEC 29794-6 compliant iris images and ISO/IEC 29794-5 compliant face images.
iData iCAM TD200 SDK
Iris ID provides a comprehensive API SDK that enables full functionality of the iCAM TD100 and TD200 — designed to closely mirror the widely deployed iData SDK, with sample application source code in C++ and C#, plus a runtime demonstration app for iris and face capture and iris template matching.
Image Capture Process

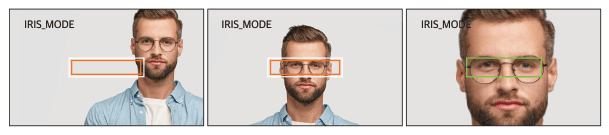

Fully automatic concurrent dual iris and face image capture is supported with the iCAM TD200. Iris and face images are collected virtually at the same time. The quality analysis routines ensure all images are ISO-compliant and are available as part of the iData Iris SDK for the field application of the iCAM TD200. An illustration of the iris capture UI screen is shown below. Iris ID’s iData Iris SDK runtime license for iris enrollment and quality assessment is available for use with the iCAM TD200.
Face capture API
The face capture API function is included in the SDK.
- The integrated framing function provides feedback for capturing a properly formatted ISO-compliant face image.
- Manual face capture with autofocus is also possible through the camera API provided by the Device Control SDK.
- Application developers can also use host-based face detection to trigger face capture automatically from the host processor.
- Face capture can be initiated through the API or via the shutter button on the iCAM TD200.

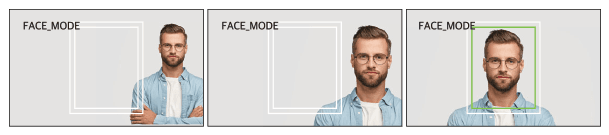

- Sample illustrations of face capture modes are shown below.
Specifications
Technical data
- Dimensions (W x H x D)
- 150mm x 83mm x 30.5mm (5.9" x 3.3" x 1.2")
- Weight
- 0.23kg (0.5lb)
- Camera Tripod Mount
- Standard 1/4"-20 tripod mount
- Power Input
- 5VDC via USB
- Power Consumption
- Idle: 2.3W, Typical: 4.3W, Max: 5.5W
- Iris Capture
- Autofocus capture, ISO/IEC 29794-6 standard compliant image
- Face/Scene Capture
- 480 x 640, 768 x 1024 ISO automatic crop, token & full-frontal face; scene 2560 x 1920; 12 available capture modes
- Iris Illumination
- Singleband IR
- Iris Enrollment
- Dual iris and face capture and authentication in less than 2 seconds; ISO/IEC 29794-6 standards compliant face & iris
- Face Capture
- Manual or auto focus available; ISO/IEC 29794-5 standards compliant image
- Scene Capture
- Manual or auto focus available through API
- Sound
- Software volume control and default sound files provided; custom audio files can be uploaded as needed
- Speaker
- 1 watt, 17mm diameter speaker
- LCD Display
- 4.3" color LCD
- Status Indicator
- Blue blinking: busy/booting; Blue solid: ready to capture; Green: success (on for two seconds); Red solid: capture complete; Red blinking: image failed QC; No indicator: power off (can also be controlled by the application directly)
- Shutter Button
- Wake up / capture face / capture scene / force iris capture
- Meta Data
- Available
- Operating Range
- 40cm – 60cm (15" – 24")
- Operating Temperature
- 0°C – 50°C (32°F – 120°F)
- Storage Temperature
- -20°C – 60°C (-4°F – 140°F)
- Humidity
- 0% – 95% non-condensing
- Certifications
- CE, FCC, KC, ISTA, USB IF, UKCA, Eye Safety, ISO Standard
