Multimodal Biometric
Automatically captures dual iris and face at the same distance.
Hardware Products
iCAM D2000
Simple convenient travel experience
From curb to gate — secure and accurate.

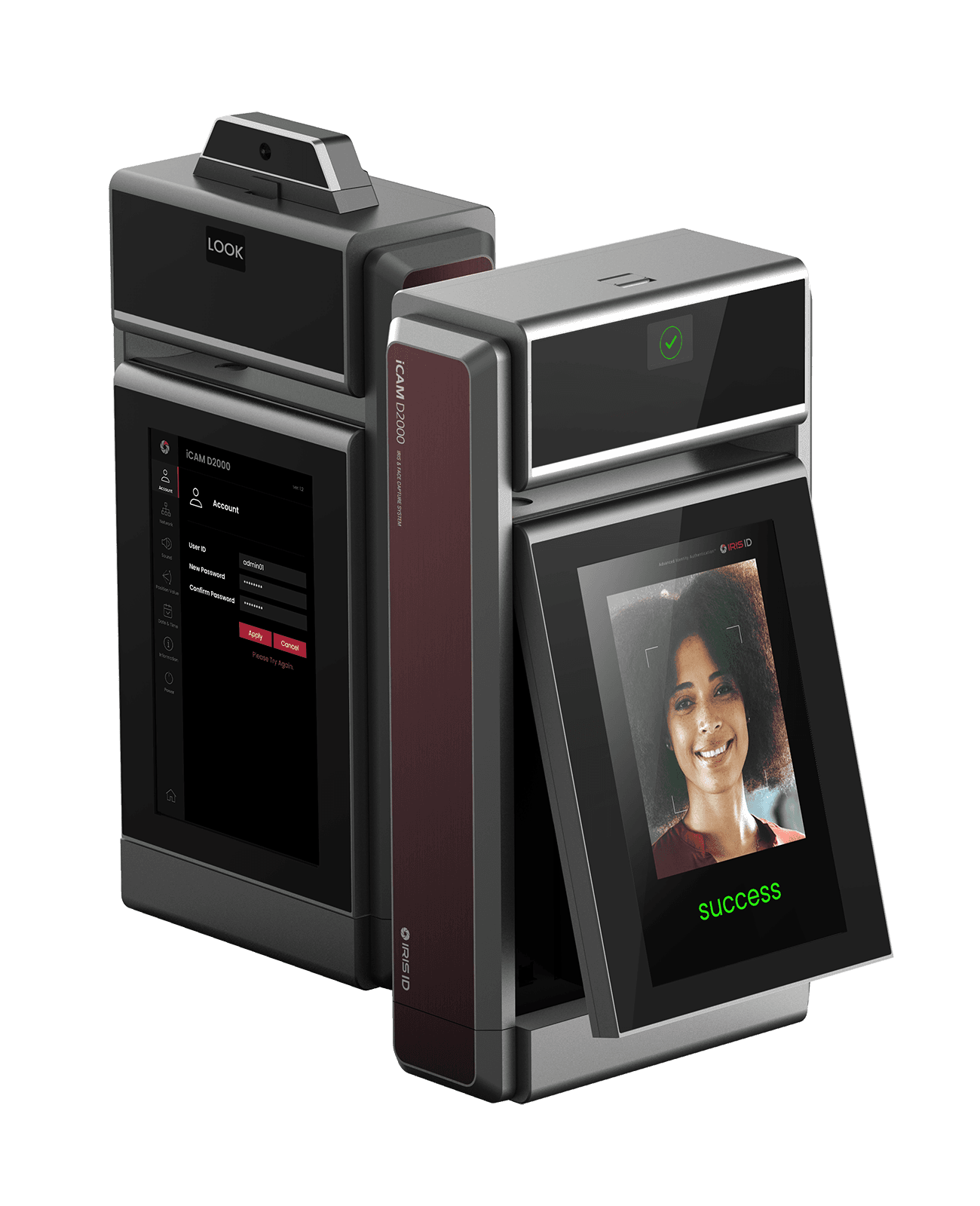

Iris ID’s iCAM D2000 multi-biometric system is compact, insightful, and delivers unparalleled quality biometric performance — a new class of multimodal iris and face identification systems ideal for identity, travel, and access solutions.
From curb to gate — secure and accurate
<1s
Dual iris + face capture
50–100cm
Capture distance
1.2–2.1m
User height range
10.1"
Guidance LCD
Overview
Built for identity, travel, and access.
Iris ID’s iCAM D2000 multi-biometric system is compact, insightful, and delivers unparalleled quality biometric performance. The innovative design represents a new class of multimodal iris and face identification systems. With a flexible capture distance ranging from 50cm to 1.0m, the iCAM D2000 provides an intuitive user experience while delivering high quality iris and face images for enrollment and identification.
Built with the user experience in mind, the iCAM D2000 is ideal for identity, travel, and access solutions. Leveraging multi-modal biometrics is a unique feature set that sets us apart and reinforces to the industry that we are not only security focused, but also customer driven. Each solution is thoughtful and aims to deliver modern design complemented with speed and accuracy.
Simple convenient travel experience
Single capture biometric system.
Ideal for enrollment or authentication. A flexible 50cm–1.0m capture distance and automatic pan, tilt, and zoom deliver high-quality dual iris and face images in under a second — with a 10.1" guidance display that keeps travelers moving.
Dual iris + face · 50–100cm range · 1.2–2.1m height · 10.1" LCD · REST API · Desk mount
Key Features
Designed for real passenger flow.
User Height Accommodation
Automatic capture range from 1.2m to 2.1m.
Countermeasure for Security
A proven set of anti-spoof measures that continues to set the standard for the industry.
Installation Flexibility
The device can be used with a mounting option that can be fixed to a desk.
Enhanced Capture Range
Range 50–100cm. Auto zoom, pan, and focus. High quality optics.
Intuitive User Guidance
10.1 inch high LCD display provides user feedback.
Mask Detection
The device can detect a user’s mask.
Standards Compliant
Standards-compliant hardware and software: CE, FCC, Eye Safety, ISO and ICAO, RoHS.
Platform-independent REST API
Iris ID provides a robust REST API to enable all functions of the iCAM D2000. It adheres to clear architectural principles, uses standard web protocols, and supports scalable, modular development — so integrators can embed dual iris and face capture into enrollment desks, kiosks, and travel workflows.

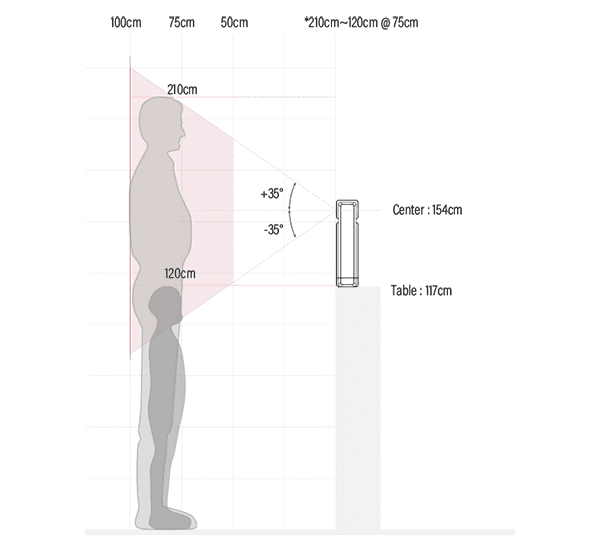

Capture Volume
Specifications
Technical data
- CPU
- Cortex-A53
- Storage
- 2GB DDR3 (1866 Mbps, 1.35V), 8GB eMMC
- OS
- Embedded Linux
- FPGA
- Spartan6 + 64MB flash memory
- Power
- 24VDC @ 5.0Amps, 120 watts
- Display
- 10.1 inch (diagonal) LCD with capacitive touch screen, 1280 x 800, MIPI DSI
- Audio
- Codec with various sample rates (8–48 KHz), speaker out
- Camera
- Face camera: ISO 29794-5 compliant; Iris camera: ISO 29794-6 compliant; Stereo camera: 2.3MP, BW, global shutter x 2
- Capture Time
- Less than 1 second for dual iris and face capture
- Illumination
- IR LED, ISO 29794-6 compliant
- Ethernet
- Ethernet 10/100 Mbps
- USB
- USB 2.0 Host/OTG
- Memory
- Micro SD socket
- Mechanics
- Precision high speed step motor (pan/tilt); iris camera lens with zoom & auto focus
- Capture Volume
- Height (tilt): ±45cm (120cm–210cm at 75cm when table height is 117cm); Width (pan): ±50cm at 100cm, ±25cm at 50cm; Distance: 50cm–100cm
- Dimensions (H x W x D)
- 41.8cm x 23.7cm x 10.45cm (16.5" x 9.3" x 4.1")
- Weight
- 8.8kg (19.4lbs)
- Operating Environment
- Operating: 32°F – 113°F (0°C – 45°C); Storage: -4°F – 203°F (-20°C – 95°C); Humidity: 5–95% non-condensing
